- Description
-
PRODUCT INTRODUCTION
Suitable for the V type thermal cutting bevel of seamed, seamless and spiralsteel pipe, Adopts die-casting technique of aluminum alloy, light weight andportable, The operation can be done
by one person, DC motor drive, thespeed is uniform and adjustable, The machine has the characteristics of smallvolume, simple structure, stable operation and high precision cutting, At
thesametime, the cutting surface is flat and does not deviate, The cutting angle isadjustable, canprocess all angles of groove,Adopts the flat trackwith springsteel, covering wide pipe diameter.Using IP67 extension cables and plugs, it has high temperature resistance, tensile strength, waterproofing, and frost resistance; The double V-shaped walking wheel tightening system can be used for any pipeline, including spiral welding and seam welding, for pipelines with a diameter of 273mm or more; Fast groove cutting is 5 times faster than traditional manual groove cutting and grinding speed; Used for pipes larger than 273mm and can be used for any angle groove requirement; High quality, smooth, and precise cutting grooves; Optional with various voltage drives of 240/110/24V; Optional aluminum alloy packaging box, lightweight,high strength, compact structure, easy to handle and store. Factory standard configuration: 1 portable flame cutting machine, 1 manual, 1 controller, 1 toolbox, and 1 power cord.PERFORMANCE PARAMETER
性 能 参 数 | PERFORMANCE PARAMETER 型号Model numbe 输入电压Input voltage 频率Frequency 额定功率Rated power 行走速度Travelling speed HQO1E AC220V DC24V 50HZ 40W 0-1100 mm/min 火焰切割厚度Flame

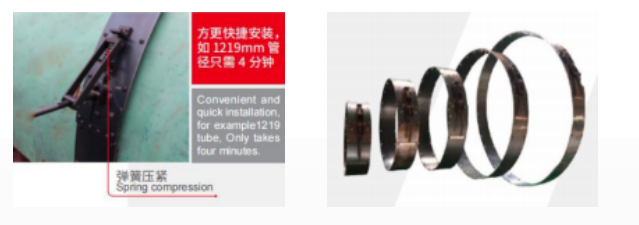

cutthickness坡口切割角度Bevelcuttingangle 端面切割角度End cutting angle 切割模式Cut mode 0-50mm 0士45。 0-5° Oxygen acetylene SPRING QUICK LOADING STRUCTURE
On site installation is simple and fast; Different specifications of tracks are suitable for pipes of different diameters; Can install various standard cutting torches.
FLAME CUTTING MACHINE
Subcategory
Keyword
- Description
-
PRODUCT INTRODUCTION
Suitable for the V type thermal cutting bevel of seamed, seamless and spiralsteel pipe, Adopts die-casting technique of aluminum alloy, light weight andportable, The operation can be done
by one person, DC motor drive, thespeed is uniform and adjustable, The machine has the characteristics of smallvolume, simple structure, stable operation and high precision cutting, At
thesametime, the cutting surface is flat and does not deviate, The cutting angle isadjustable, canprocess all angles of groove,Adopts the flat trackwith springsteel, covering wide pipe diameter.Using IP67 extension cables and plugs, it has high temperature resistance, tensile strength, waterproofing, and frost resistance; The double V-shaped walking wheel tightening system can be used for any pipeline, including spiral welding and seam welding, for pipelines with a diameter of 273mm or more; Fast groove cutting is 5 times faster than traditional manual groove cutting and grinding speed; Used for pipes larger than 273mm and can be used for any angle groove requirement; High quality, smooth, and precise cutting grooves; Optional with various voltage drives of 240/110/24V; Optional aluminum alloy packaging box, lightweight,high strength, compact structure, easy to handle and store. Factory standard configuration: 1 portable flame cutting machine, 1 manual, 1 controller, 1 toolbox, and 1 power cord.PERFORMANCE PARAMETER
性 能 参 数 | PERFORMANCE PARAMETER 型号Model numbe 输入电压Input voltage 频率Frequency 额定功率Rated power 行走速度Travelling speed HQO1E AC220V DC24V 50HZ 40W 0-1100 mm/min 火焰切割厚度Flame
cutthickness坡口切割角度Bevelcuttingangle 端面切割角度End cutting angle 切割模式Cut mode 0-50mm 0士45。 0-5° Oxygen acetylene SPRING QUICK LOADING STRUCTURE
On site installation is simple and fast; Different specifications of tracks are suitable for pipes of different diameters; Can install various standard cutting torches.
