PRODUCT INTRODUCTION

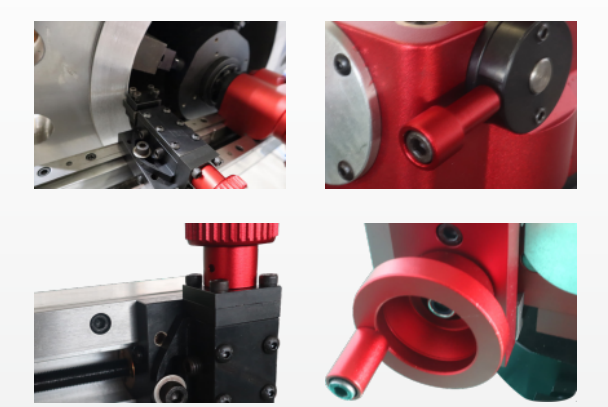

Internal expansion positioning installation, supported by four or eight claws, meets therequirements of large cutting volume processing, and has high efficiency; Innovative knifeholder design, capable of 360 degree rotation, with a wide range of applications; Providethree driving modes for selection: pneumatic, hydraulic, and electric, suitable for the needs ofdifferent customers; The scale display of the feed handwheel ensures accurate feed accuracy;The cutting tool can achieve automatic feed in both axial and radial directions, achievingprecise machining; The knife holder can be adjusted, and the axial and radial cutting speedcan be adjusted in three gears. The design is innovative and has a wide range of applications;Designed with lightweight materials such as aluminum alloy and titanium alloy, it has asmall volume, light weight, and portability; Switching within the range of surface roughnessRa0.8 μ m-12.5 μ m; The adjustable speed range is large, suitable for different processingrequirements; It can be installed horizontally, vertically, upside down, or tilted; Can processsmooth surfaces, water lines, straight grooves, and inclined grooves.PERFORMANCE PARAMETER
型号
安装方式
装卡范围 (mm)
加工范围 (mm)
转速 (rpm)
动力参数
FDX305
内胀式
50-320
50-355
0-42
1.1P/H
FDX610
内胀式
50-508
50-610
0-42
1.1P/H
FDX860
内胀式
145-813
152-865
0-33
2.0P/H
FDX1000
内胀式
145-927
152-1016
0-33
2.0P/H
FDX1500
内胀式
290-1400
305-1500
0-22
4.0P/5.0H
FDX2000
内胀式
604-1830
610-2032
0-20
4.0P/5.0H
FDX3000
内胀式
1120-2800
1150-3050
0-12
4.0P/5.0H
FDX3500
内胀式
1120-3200
1150-3500
0-11
4.0P/5.0H
FDX4000
内胀式
1450-3900
1450-4055
0-9
4.0P/5.0H
PRODUCT DETAILS
FLANGE END FACE REPAIR MACHINE
Subcategory
Keyword
- Description
-
PRODUCT INTRODUCTION
Internal expansion positioning installation, supported by four or eight claws, meets therequirements of large cutting volume processing, and has high efficiency; Innovative knifeholder design, capable of 360 degree rotation, with a wide range of applications; Providethree driving modes for selection: pneumatic, hydraulic, and electric, suitable for the needs ofdifferent customers; The scale display of the feed handwheel ensures accurate feed accuracy;The cutting tool can achieve automatic feed in both axial and radial directions, achievingprecise machining; The knife holder can be adjusted, and the axial and radial cutting speedcan be adjusted in three gears. The design is innovative and has a wide range of applications;Designed with lightweight materials such as aluminum alloy and titanium alloy, it has asmall volume, light weight, and portability; Switching within the range of surface roughnessRa0.8 μ m-12.5 μ m; The adjustable speed range is large, suitable for different processingrequirements; It can be installed horizontally, vertically, upside down, or tilted; Can processsmooth surfaces, water lines, straight grooves, and inclined grooves.PERFORMANCE PARAMETER
型号
安装方式
装卡范围 (mm)
加工范围 (mm)
转速 (rpm)
动力参数
FDX305
内胀式
50-320
50-355
0-42
1.1P/H
FDX610
内胀式
50-508
50-610
0-42
1.1P/H
FDX860
内胀式
145-813
152-865
0-33
2.0P/H
FDX1000
内胀式
145-927
152-1016
0-33
2.0P/H
FDX1500
内胀式
290-1400
305-1500
0-22
4.0P/5.0H
FDX2000
内胀式
604-1830
610-2032
0-20
4.0P/5.0H
FDX3000
内胀式
1120-2800
1150-3050
0-12
4.0P/5.0H
FDX3500
内胀式
1120-3200
1150-3500
0-11
4.0P/5.0H
FDX4000
内胀式
1450-3900
1450-4055
0-9
4.0P/5.0H
PRODUCT DETAILS
